HTTMT- HD Color CMOS Car License Plate Frame Mount Rear View Backup Camera 8 IR LED US

SKU: USMT371-030-BK3

HTTMT- HD Color CMOS Car License Plate Frame Mount Rear View Backup Camera 8 IR LED US

$27.99

More payment options

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Barcode: 840343974954

DESCRIPTION

Attributes:

This backup camera is designed to give additional convenience when backing your vehicle.

Metal frame with Black finish, it's a perfect fit for any car and it's almost invisible once mounted.

This camera has been developed and produced from the highest quality materials available to ensure the best performance for years to come.

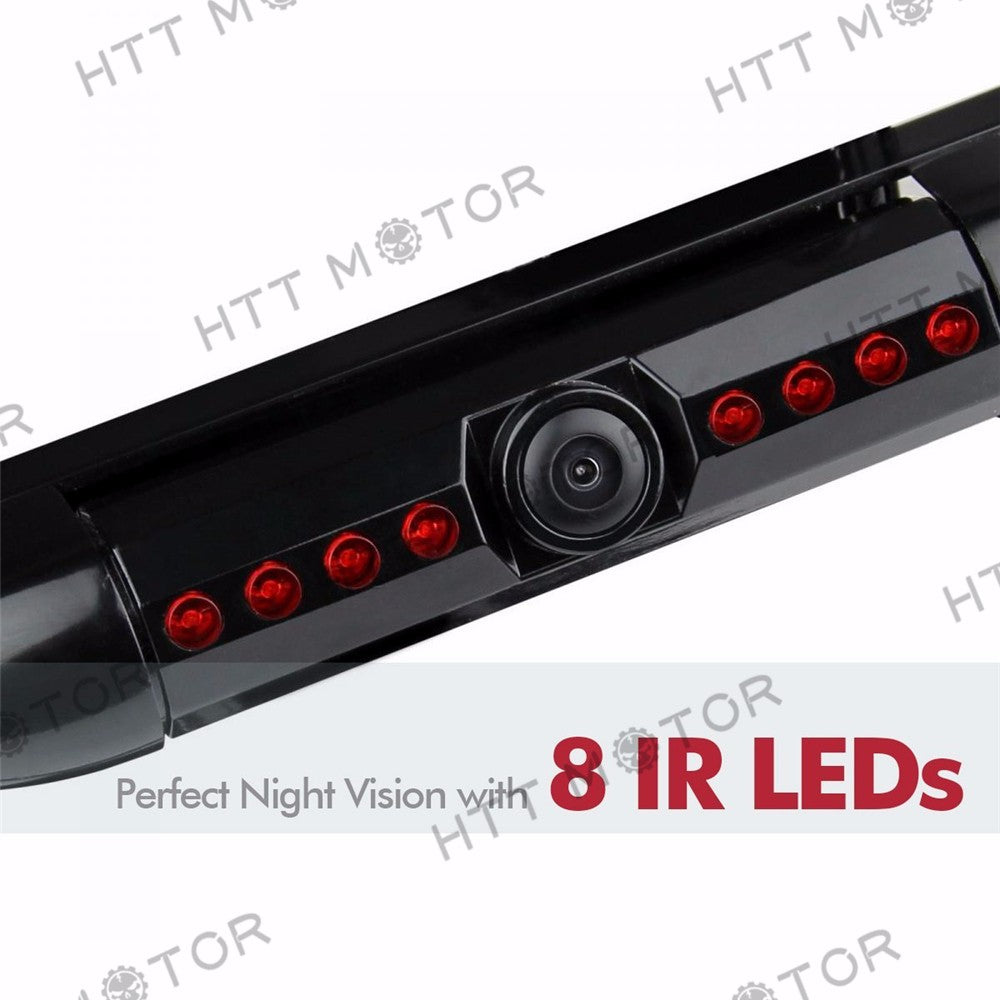

Thanks to the IP67-compliant weatherproofing and night vision infrared LEDs, the camera works in a variety of (even extreme) weather condition and at night.

The camera equipped with a 170?? lens which is up and down tiltable,it provides you large viewing fields and eliminates blind spots behind you.

Please consulting an experienced technician if you are not familiar with installing the Backup Camera.

Specifications:

Sensing area: NTSC 4.08 x 3.10mm

Effective Pixels: NTSC 510*496 pixels

Horizontal Resolutions: 420 TV lines

Minimum Illumination: 0lux with IR on

Video output: RCA connector, 1.0V p-p, 75ohm

Power Consumption: 60mA

Power Supply: DC12V

Note:

This camera has a mirror image.

This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system.

During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly.

(Please note that the red wire end is positive, while the black one is negative). And connect the RCA output end to the car monitor.

The camera switch is controlled by the reverse gear shift.

Please take care of the sealing to prevent water leakage when installation.

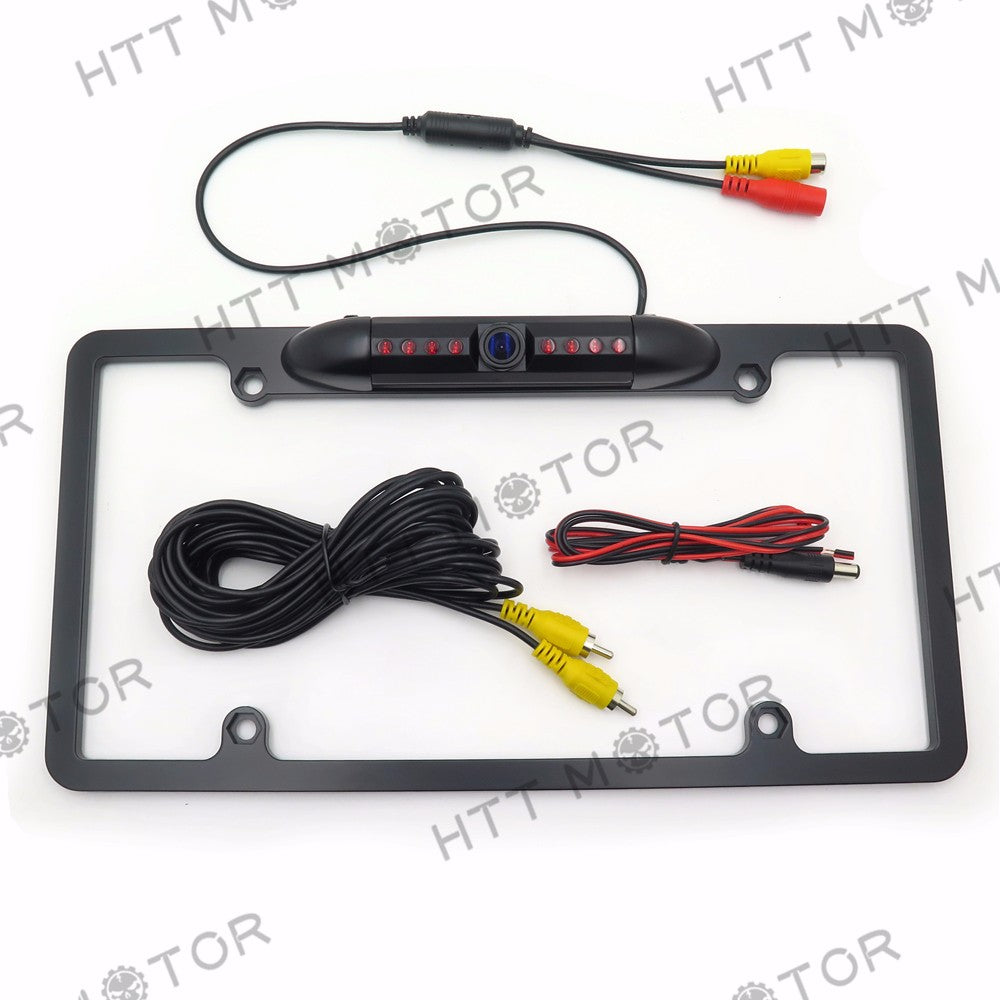

Package Includes:

1 x Esky Rear View Camera

1 x 3.5ft Power Cable

1 x 20ft RCA Video Cable

1 x User Manual
